Description

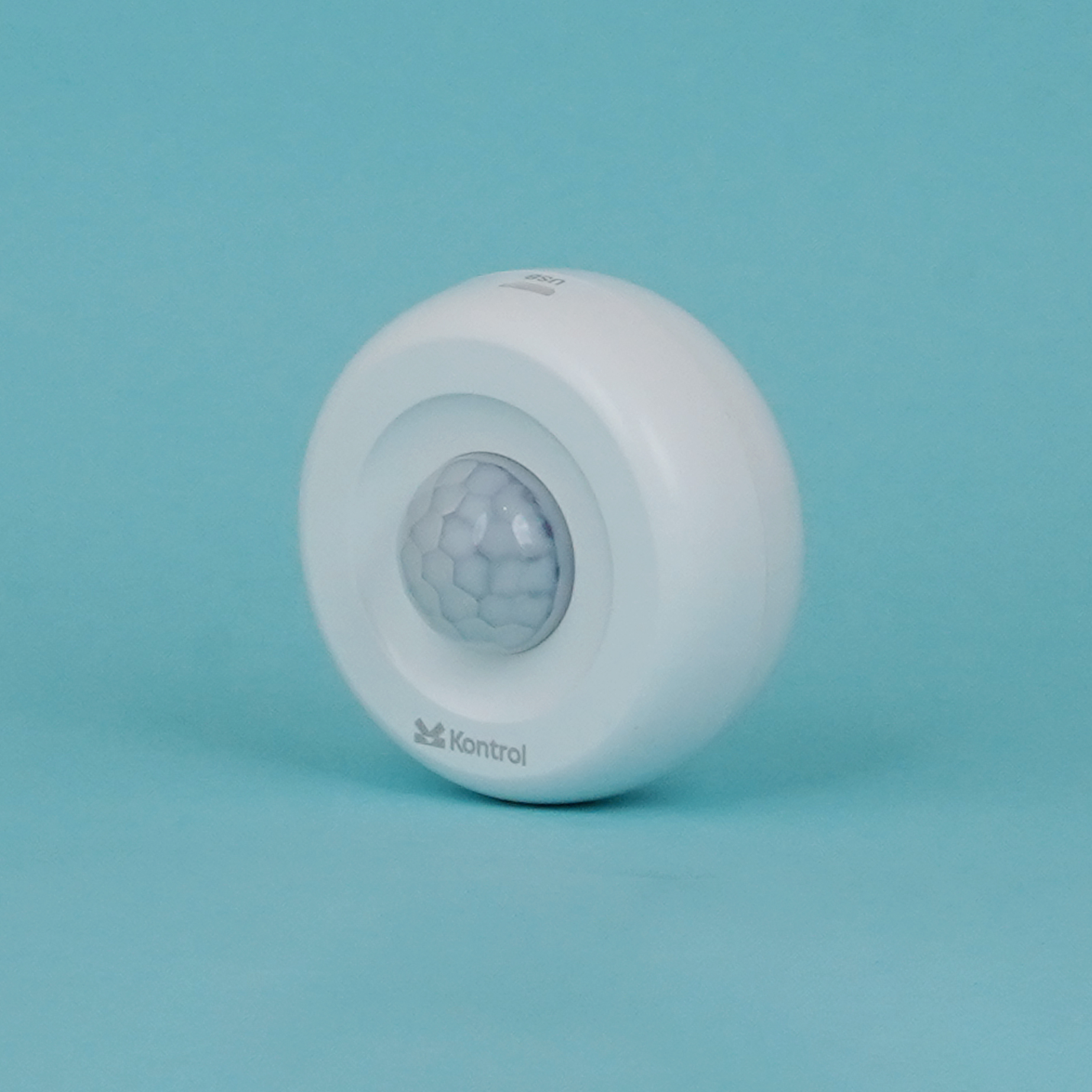

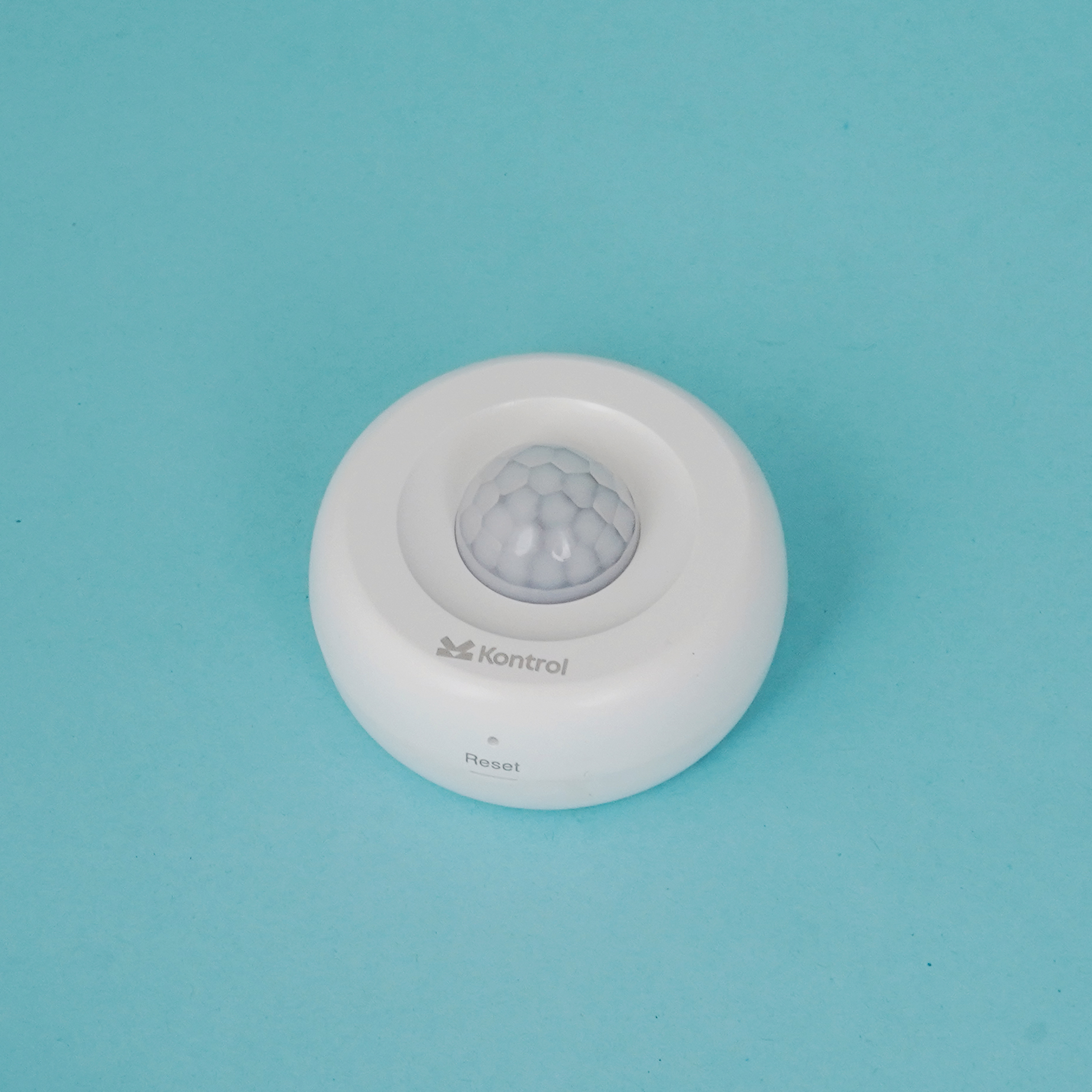

The GS-HW04-Zigbee is a smart Zigbee PIR Motion Sensor designed for modern smart home systems. It accurately detects human motion using passive infrared (PIR) technology and sends real-time alerts or triggers automation scenes via a Zigbee hub.
Unlike typical battery-only models, the GS-HW04-Zigbee supports dual power options—USB-powered or battery-operated—offering flexible installation for long-term, maintenance-free use. It’s compatible with Kontrol and other Zigbee 3.0 platforms and is ideal for lighting automation, security alerts, and occupancy-based control.
Technical Specifications
- Product Name: Zigbee PIR Motion Sensor
- Product Model: GS-HW04-Zigbee
- Detection Type: Passive Infrared (PIR)
- Input Power Options:
- Battery: DC 3V (2 × AAA batteries)
- USB Port: Micro-USB 5V DC input (for continuous power supply)
- Wireless Protocol: Zigbee 3.0 (Requires Zigbee Hub)
- Detection Range: Up to 6 meters
- Detection Angle: 120° horizontal
- Mounting Height: Recommended 2–2.5 meters
- Working Temperature: –10°C to +50°C
- Working Humidity: ≤95% RH (non-condensing)
- Standby Current: ≤10 μA
- Alarm Current: ≤30 mA
- Dimensions: 60 × 60 × 45 mm
- Material: ABS + Fireproof PC
- Installation: Wall or ceiling mount (adhesive or screws)
- Battery Life: Up to 12 months (depending on usage)
- USB Port Type: Micro-USB (5V DC input)
- Certifications: CE, RoHS (if applicable)
Key Features
✅ Dual Power Options – Supports USB power for continuous use or AAA batteries for flexible placement
✅ Zigbee 3.0 Support – Works with Zigbee hubs such as Kontrol
✅ Smart Motion Detection – Detects human movement instantly with wide-angle coverage
✅ Scene Automation – Triggers lights, sirens, curtains, or other devices when motion is detected
✅ App Notifications – Real-time motion alerts sent to smartphone via Tuya or compatible apps
✅ Compact & Easy Install – Mountable using screws or adhesive in under 5 minutes
✅ Low Power Consumption – Energy-efficient PIR sensor for long-lasting battery use
