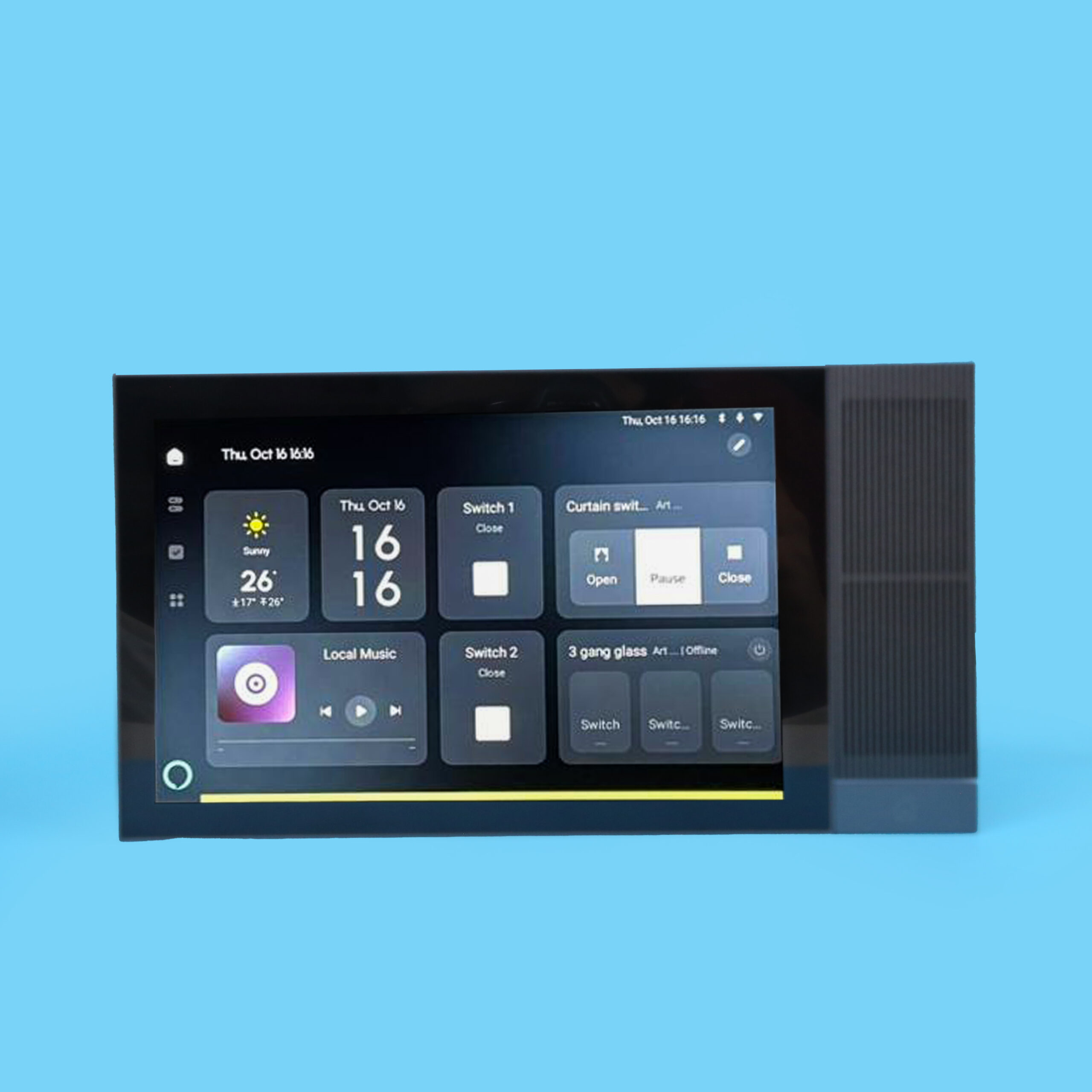

Control 8 Surface Grey

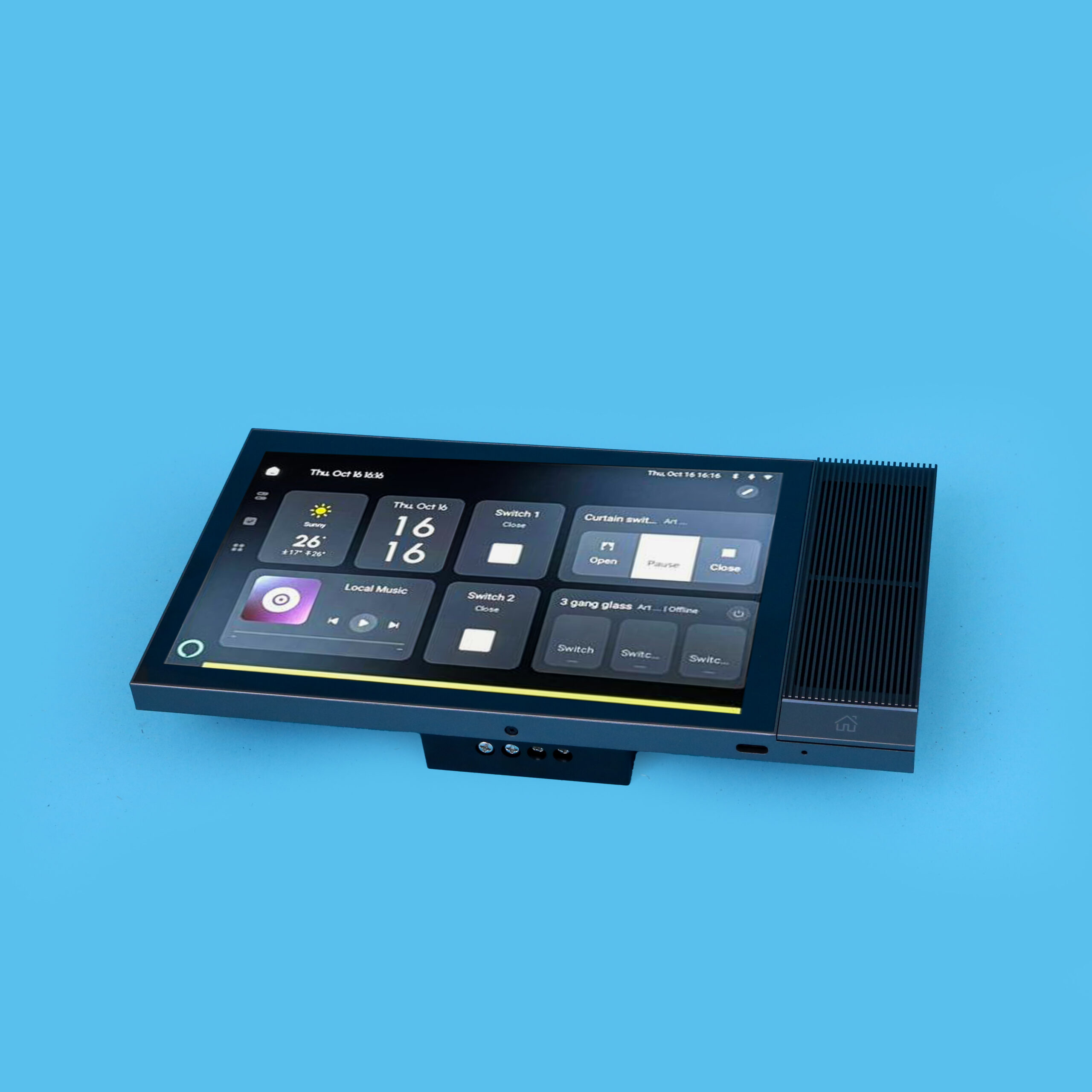

Control 8 Surface Grey - Image 2
Control 8 Surface Grey - Image 3

Control 8 Surface Grey

Control Panel

The 8-Inch Smart Control Panel 8 Pro is a powerful all-in-one smart home hub combining an 8-inch high-resolution touchscreen, built-in Alexa voice assistant, Zigbee gateway, IR controller, 2-gang light switch, and integrated ceiling speaker connectivity.

Tags: Smart Home Hub Video Intercom

Description

The 8-Inch Smart Control Panel 8 Pro is a powerful all-in-one smart home hub combining an 8-inch high-resolution touchscreen, built-in Alexa voice assistant, Zigbee gateway, IR controller, 2-gang light switch, and integrated ceiling speaker connectivity. Designed for modern home automation, this control panel offers seamless local and cloud control over lighting, climate, scenes, music, and more—without needing multiple separate devices.

Supporting Zigbee, Wi-Fi (2.4GHz & 5GHz), Bluetooth, IR, and Sigmesh protocols, it functions as a true smart home centerpiece for both wired and wireless automation systems.



Technical Specifications

  • Product Name: Control Panel 8 Pro
  • Product Model: TPA08-M3A
  • 8 Pro
  • Display Screen: 8-Inch IPS Touchscreen, 1920 × 720 Resolution
  • Integrated Functions:
    • Zigbee Gateway
    • Infrared (IR) Controller
    • 2-Gang Smart Light Switch
    • Built-in Alexa Voice Assistant
    • Connection Support for Ceiling Speakers
  • Input Voltage: 100–240V AC (±10%), 50/60Hz
  • Switch Load Capacity:
    • Incandescent/Tungsten: Max 200W
    • Dimmable CFL/LED: Max 200W
    • Ballast/Fluorescent: Max 200W
  • Wireless Protocols:
    • Wi-Fi 2.4GHz & 5GHz
    • Zigbee
    • Bluetooth
    • IR
    • Sigmesh
  • Network Support: RJ45 (Ethernet), Wi-Fi, Bluetooth, Zigbee
  • Installation: Fits Standard 86-Sized Wall Boxes
  • Product Size (Panel Only):5 × 233.5 × 8 mm
  • Product Size (With Base):5 × 233.5 × 38 mm
  • Outer Material: ABS + PC (Durable & Heat-Resistant)



Key Features

✅ 8-Inch Full Touchscreen – Ultra-clear IPS display with 1920 × 720 resolution for intuitive control.
✅ All-in-One Integration – Zigbee gateway, IR control, 2-gang switch, and Alexa built into one panel.
✅ Voice Control Ready – Native Alexa voice assistant enables hands-free smart home control.
✅ Ceiling Speaker Support – Seamless integration for in-wall music control.
✅ Multi-Protocol Communication – Works with Zigbee, Wi-Fi, IR, Bluetooth, Sigmesh, and RJ45.
✅ Smart Lighting Control – Built-in dual-channel switch with wide load compatibility.
✅ Compact & Elegant Design – Sleek form factor fits standard wall boxes for clean installation.
